Also known as plug gauge. A gauge used to measure dimension of hole or axis.
A type for inspection and construction exist.
-
PLUG GAUGE
PLUG GAUGE
According to the provisions of CNS4-2, the plug gauges are divided into full cylindrical plug gauges, full spherical plug gauges or disc gauges, arc spherical plug gauges, arc cylindrical rod gauges with reduced measuring surface, and ball end long rod gauges. Plug gauges can be divided into single-end cylindrical, end-cylindrical, circular, threaded, splined shaft, and replaceable plug gauges.
Series Overview
The way to distinguish between the open end and the unclear end can be expressed by the gauge length and red paint.
If it is single-ended, the front is the clear end and the back is the unclear end.
If it is double-ended, the longer one is a pass end, the shorter one is a dead end, and the groove painted with red paint is a dead end.
For round holes of various sizes, you can quickly check whether the hole diameter meets the required tolerance range.
The taper hole can also be checked outside the parallel hole. -
RING GAUGE
RING GAUGE
According to CNS4-2, the ring gauge is a full cylinder. Ring gauges can be divided into categories such as cylinder, thread, degree, and key groove according to the shape, and the identification method is exactly the same as that of plug gauges.
Series Overview
For external circles of various sizes, you can quickly check whether the diameter of the external circle meets the required range. -
THREAD PLUG GAUGE
THREAD PLUG GAUGE
Thread measuring gauge for detecting the mountain shape and reference size of the internal thread.
Series Overview
By smoothly screwing into workpieces a plug gauge and ring gauge composition, it can be ensured that the male and female threads can be selected for mutual to lock bolt. It can be used for correction gauges and can also be gauge as an inspection of internal threads tool.
It is for use checking the internal thread against the standard. Can be certified in accordance with international norms or the manufacturers of standard production and custom. The plug gauges by color according to intended use for easy product management. -
THREAD RING GAUGE
THREAD RING GAUGE
Thread gauge for detecting the mountain shape and reference size of external thread. Through the ring gauge and bolt composition that can be screwed into the object smoothly, it can be ensured that the male and female threads can be selected for mutual to lock bolt.
Series Overview
An inspection tool that can quickly inspect external threads. -
THREAD TOOL
THREAD TOOL
Thread Cutting Tool
Series Overview
Various thread processing tools, according to various equipment processing methods, select suitable cutting tools. -
THREAD TAP
THREAD TAP

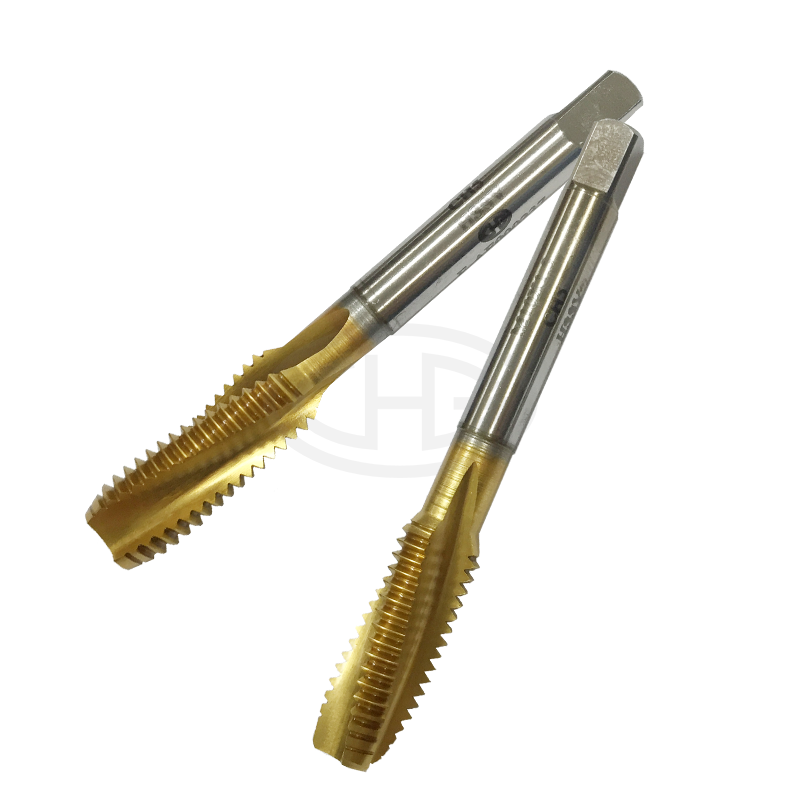

For internal thread processing, select suitable thread taps according to various equipment processing methods and cutting directions.
Series Overview -
INSTRUMENT
INSTRUMENT

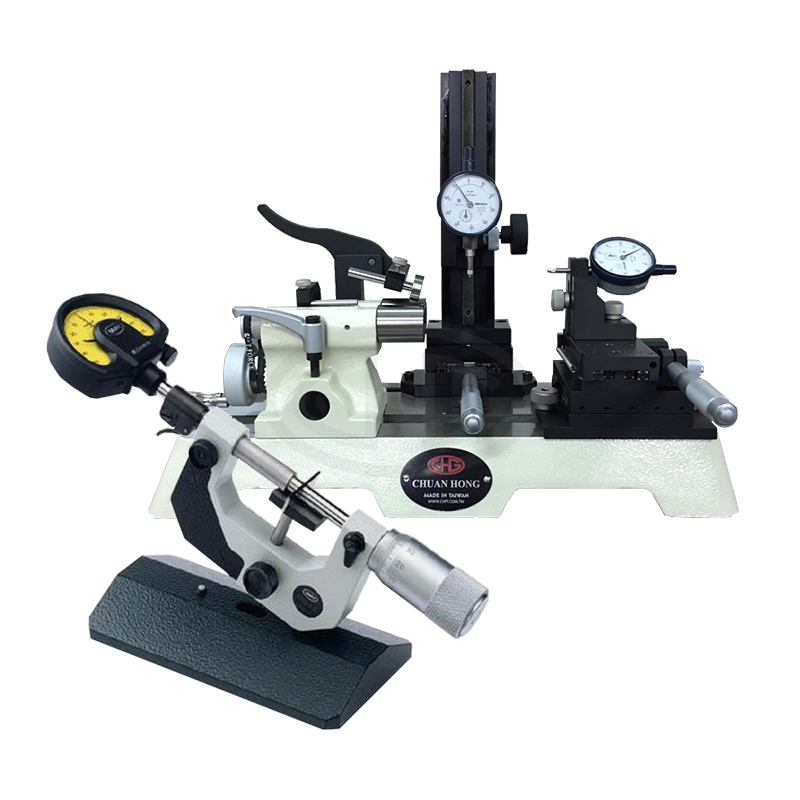

Commonly used for measuring diameter or thread measuring tools. Hand-held measuring tools such as: Vernier calipers, needle gauges, round bars, external test separation cards, thread wear gauges, checkpoint gauges, etc. Countertop measuring instruments: thread detectors, etc.
Series Overview -
PLANETARY ROLLER SCREWS
Precision and Customizability of Planetary Roller Screw Drive Systems for Various Industrial Applications
Planetary roller screw drive systems are an effective solution for converting rotary motion into linear motion with precision. Leveraging years of experience and profound expertise in screw engineering design, we have developed a product line that meets various requirements. Whether it's the highest linear speed, maximum rated load, or minimum structure height, the Chuan Hong precision product line offers the best solutions.
Our products include ground-grade and turned-grade planetary roller screws, which are optimized and designed for high-load and high-speed use in adverse environments. Compared with ball screws, planetary roller screws are better designed and have a more efficient circulation design.
Custom screws can be designed according to drawings, and nuts can be customized according to specific requirements. With the addition of sensors, real-time monitoring and predictive maintenance can be achieved.
These systems are suitable for use in automation equipment, medical-grade industry, precision machine tools, and special industrial machinery.
Series Overview -
